Theegarten-Pactec develops suction support sealing packaging for chocolate

German-based equipment specialist Theegarten-Pactec has unveiled a new suction support sealing system targeting greater precision of packaging for chocolate, as well as saving on materials, reports Neill Barston

The company explained to Confectionery Production that its latest process has been designed with environmental benefits that have been designed to make manufacturing processes more stable.

Development of its new system follows a recent European study on consumer preferences for packaging carried out in March 2020 revealed that almost 70 percent of respondents were actively trying to reduce their use of plastic packaging (Two Sides: “The Packaging Report 2020”).

Particularly in the market for flexible packaging, for example the primary packaging of products offered to the end consumer in retail outlets, sustainable and recyclable packaging is becoming increasingly important. This has led to interest among brand owners, and thus among players in the packaging industry, to switch to sustainable materials such as recyclable mono-materials and to packaging processes that have been designed precisely for these materials.

This is a switch that is challenging to implement, especially in the packaging of chocolate products. Two traditional methods of effectively packaging sweets are outlined below.

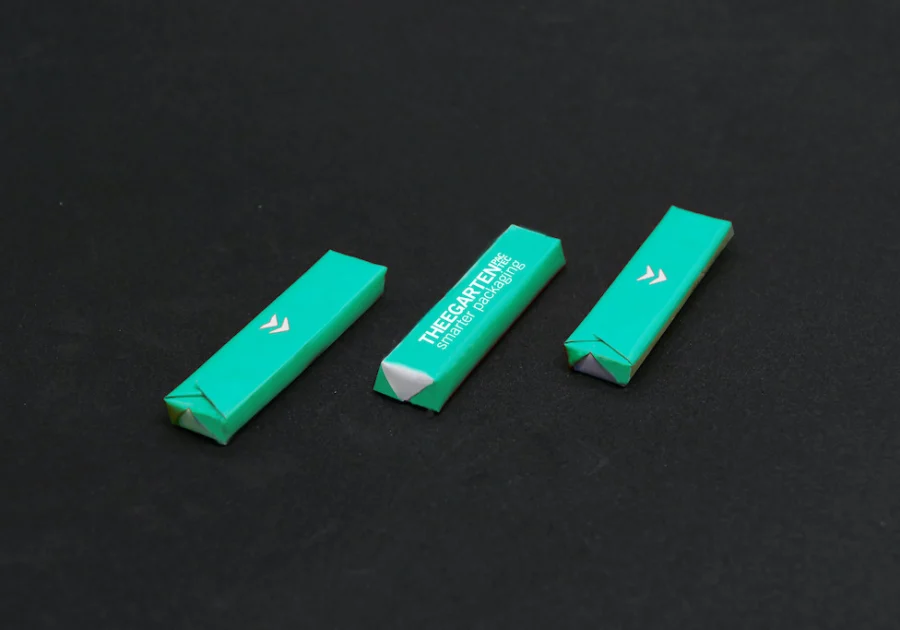

A variety of bars are packaged using composite materials, such as a base of plastic or paper in combination with an aluminium layer. The products can therefore be easily packaged by fold wrapping and do not require any additional securing of the packaging by sealing or glue.

However, packaging materials made of composite materials are not recyclable and are therefore not sustainable in view of market developments. It therefore makes sense to switch to the use of recyclable mono-materials for packaging processes. However, these materials have poor dead-fold properties, i.e. the packaging must be closed and fixed after folding by sealing or with the aid of glue so that it cannot open again.

For well-known brand products, a second packaging variant is traditionally used: a combination of two packaging materials – aluminium paper laminate and plastic packaging. This first “packaging layer”, the inner wrap of aluminium paper laminate, is required as a barrier to protect the sensitive chocolate products during the actual packaging process.

When closing the outer wrap using contact sealing technology, the chocolate could otherwise be damaged by the heat that is generated or by the sealing tools used. As an alternative to this process, packaging has been glued with hot melt. The packaging specialists at Theegarten-Pactec have now developed a technology called “suction supported sealing”, which offers numerous advantages over these conventional processes.

Risks of conventional processes such as sealing or gluing with hot melt

As the Dresden-based business explained, the chocolate is packaged in a material such as plastic, by means of fold wrapping. However, since plastics have poor dead-fold properties, i.e. the packaging opens again after folding, it must be actively closed and fixed by sealing or with the use of glue.

For this purpose, during the sealing process, the sealing tool is pressed against the packaging material from the outside to connect the outer and inner flap of the plastic packaging with each other. This ensures that the packaging is fixed after folding but is still easy for the consumer to open. The problem with this procedure is that when the sealing tool is applied, the packaging material lies close to the product. In order to effectively dissipate the heat generated, the inner wrap of aluminium paper laminate is used. However, the use of two packaging materials – aluminium paper laminate plus plastic packaging – is neither environmentally friendly nor particularly cost-saving or recyclable. Therefore, the use of a sealable, and ideally even recyclable, mono-film is recommended.

The alternative, which involves the application of glue dots, ensures a permanent closure of the plastic packaging, but also has disadvantages. Clogged glue nozzles or contamination can lead to an increased susceptibility to malfunction and to the need for additional work with respect to cleaning and maintenance of the packaging machine. This reduces the efficiency of the packaging process and generates additional costs.

Furthermore, the application of glue not only involves risks for the machines and aggregates, but also for the product itself. Incorrectly adjusted glue nozzles and the resulting distortion of the packaging material due to excessive glue application can result in the glue being transferred to the chocolate product and thus contaminating it.

Suction supported sealing technology – integration into the packaging process and machines

The sealing station developed by Theegarten-Pactec is located directly after the actual wrapping or packaging station. As soon as a product has reached the sealing station, the sealing tool moves to the product to be sealed at a distance of 0.5 mm to 1 mm. Negative pressure then causes the package to be sucked onto the sealing stamp. In this way, there is no direct contact between the packaging and the product during the sealing process.

The heat required for the sealing process is thus distributed selectively and evenly over the entire sealing surface, thereby ensuring that there are no pressure marks or other damage to the chocolate product. Active cooling of the environment ensures additional product safety. After sealing for approx. 50 – 60 milliseconds, the contact between the packaging material and the sealing jaw is terminated when the sealing stamp moves away – which may be assisted if required by switching off the vacuum.  The packaging material detaches from the sealing station and once again rests directly on the chocolate product which has now been completely packed. The sealing seam only comes into contact with the product again after it has sufficiently cooled.

The innovative technology can be easily integrated into the standard packaging machines of the Dresden-based company, with implementation being possible for various service areas and products such as chocolate bars and pralines. In addition to the compact and flexible CWM2 wrapping machine for chocolate products with a capacity of up to 600 products/min, the sealing station can also be integrated into the CFW-S for chocolate bars in letter fold with or without packaging band with up to 850 products/min.

Implementation in the CFW-D double-lane high-performance packaging machine for chocolate products in letter fold with packaging band and up to 1,400 products/min is also possible without great effort. Moreover, even existing machines such as the U1-C high-performance packaging machine can be retrofitted with this new technology.

Sustainable alternative: material-saving, cost-reducing and environmentally friendly

Theegarten-Pactec’s innovative technology offers numerous advantages: Material costs can be reduced by eliminating the need for aluminium laminate to dissipate heat and protect the chocolate. At the same time, negative environmental influences caused by the production of the material are reduced. In addition, there is no need for an unwinding unit for aluminium paper or aluminium-PP composites in the packaging machine. This saves set-up and adjustment times and makes the packaging process more stable and therefore less susceptible to faults.
